Electromagnetic Shielding Coating ST-ES (series)
Product Introduction
Excellent radiation protection and electromagnetic shielding performance, low resistivity, and good function of eliminating electrostatic load; effectively shield electromagnetic wave interference, excellent flame retardancy, extremely strong durability and weather resistance: low temperature resistance, acid and alkali resistance, water resistance, anti-corrosion and ultraviolet protection.
Uses
Widely used in electronic circuits, electrical appliances, computer rooms and other places that require clean anti-radiation and electromagnetic wave shielding for anti-corrosion protection.
Performance indicators

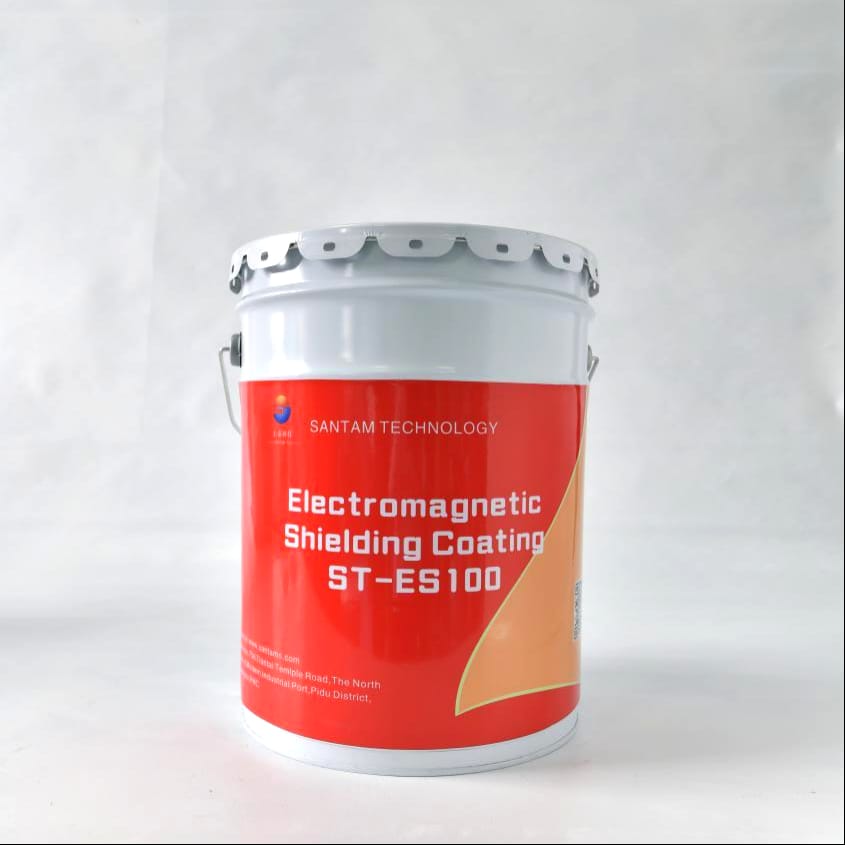

| Type | ST-ES100 |
| Resin matrix | Polyurea resin |
| Colour | Dark gray |
| Adhesion | ≤Level 1 |
| Shielding effectiveness 30MHz--1.5GHz | 35-60dB |
| Suggested thickness of dry film | （90~120）μm |
| Operating temperature | -55℃～85℃ |
| Drying time - surface drying | ≤0.5h，21ºC |
| Drying time - full cure | ≤24h，21ºC |
| Storage period | （21°C，Unopened）12 months |
| VOC content | ≤80g/L |
| Total content of benzene derivatives | Total content of benzene, toluene, and xylene≤50mg/kg |
| Soluble heavy metals | No cadmium (Cd), chromium (Cr), and mercury (Hg) heavy metals |
| High temperature test | No cracks, bubbles or peeling phenomena on the material surface |
| Low temperature test | No cracks, bubbles or peeling phenomena on the material surface |
| Salt spray test | No cracks, bubbles or peeling phenomena on the material surface |
| Damp heat test | No cracks, bubbles or peeling phenomena on the material surface |
| Temperature shock | No cracks, bubbles or peeling phenomena on the material surface |
| Mold test | ≤Level 1 |
Construction process suggestions
The electromagnetic shielding coating can be applied in various ways, such as roller coating, brushing, and spraying. It is easy to operate. The specific construction steps are as follows:
1) Clean up the dust on the base surface and keep the base surface clean and tidy.
2) Stir the coating evenly and then it can be directly constructed.
3) Make a decorative surface layer on the surface of the electromagnetic shielding coating, which does not affect the shielding effect of the product.
Product Introduction
Excellent radiation protection and electromagnetic shielding performance, low resistivity, and good function of eliminating electrostatic load; effectively shields electromagnetic wave interference, has excellent flame retardancy, extremely strong durability and weather resistance: resistant to low temperatures, acids and alkalis, water resistance, anti-corrosion and ultraviolet rays.
Uses
1. Applied in building internal radiation protection (anti-electromagnetic wave, electromagnetic protection coating), anti-electromagnetic wave interference and anti-static, etc.
2. Widely used in hospitals, telecommunications, substations, computer rooms and other large and medium-sized industrial computer rooms, petroleum industry, pharmaceutical factories, laboratories, classified places, electric vehicles, electronic parts production and other industries.
3. Applied to some plastics and rubber plastics that are easily affected by electromagnetic waves, such as the inner surface of plastic casings and chassis of precision instruments and military equipment, to form a conductive coating. Utilizing the conductivity of the coating, it has the characteristics of absorbing, transmitting and attenuating electromagnetic waves like metals, preventing external electromagnetic waves from interfering with the internal circuits and components of the instrument, and also preventing the internal information of the instrument from leaking to the outside.
4. Applied in the production of electromagnetic shielding/(conductive) rubber, conductive gaskets, conductive adhesives, electromagnetic shielding plastics, electromagnetic shielding plates, electromagnetic shielding films, waveguide ventilation plates and various wave-absorbing materials.
Performance indicators

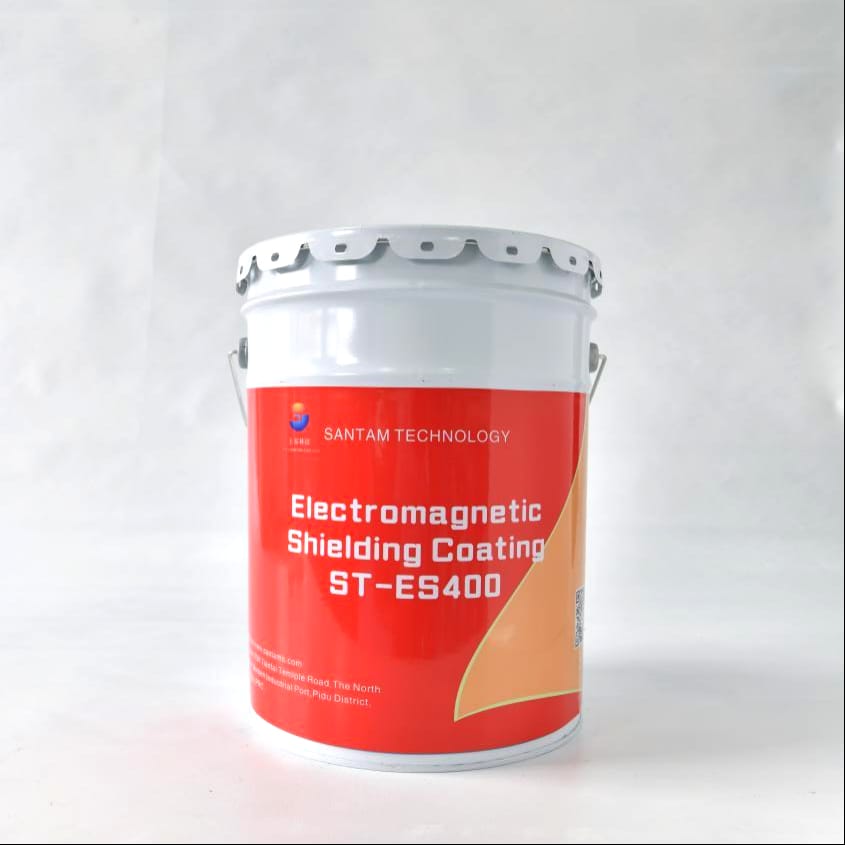

| Type | ST-ES400 |
| Resin matrix | Polyurea resin |
| Colour | Silver-yellow |
| Adhesion | ≤Level 1 |
| Shielding effectiveness 30MHz--1.5GHz | 60-80dB |
| Suggested thickness of dry film | （60~80）μm |
| Operating temperature | -55℃～85℃ |
| Drying time - surface drying | ≤0.5h，21ºC |
| Drying time - full cure | ≤24h，21ºC |
| Storage period | （21°C，Unopened）12 months |
| VOC content | ≤80g/L |
| Total content of benzene derivatives | Total content of benzene, toluene, and xylene≤50mg/kg |
| Soluble heavy metals | No cadmium (Cd), chromium (Cr), and mercury (Hg) heavy metals |
| High temperature test | No cracks, bubbles or peeling phenomena on the material surface |
| Low temperature test | No cracks, bubbles or peeling phenomena on the material surface |
| Salt spray test | No cracks, bubbles or peeling phenomena on the material surface |
| Damp heat test | No cracks, bubbles or peeling phenomena on the material surface |
| Temperature shock | No cracks, bubbles or peeling phenomena on the material surface |
| Mold test | ≤Level 1 |
Construction process suggestions
The electromagnetic shielding coating can be applied in various ways, such as roller coating, brushing, and spraying. It is easy to operate. The specific construction steps are as follows:
1) Clean up the dust on the base surface and keep the base surface clean and tidy.
2) Stir the coating evenly and then it can be directly constructed.
3) Make a decorative surface layer on the surface of the electromagnetic shielding coating, which does not affect the shielding effect of the product.
