0102030405
ST-100 Polyaniline Conductive Polymer
Product Introduction
- ST-100 polyaniline conductive polymer is a kind of ultra-thin conductive polymer coating, which has a conductivity of 7.5 S/cm.
Applications: sensors, optoelectronics, or printed electronics.
performance index ：

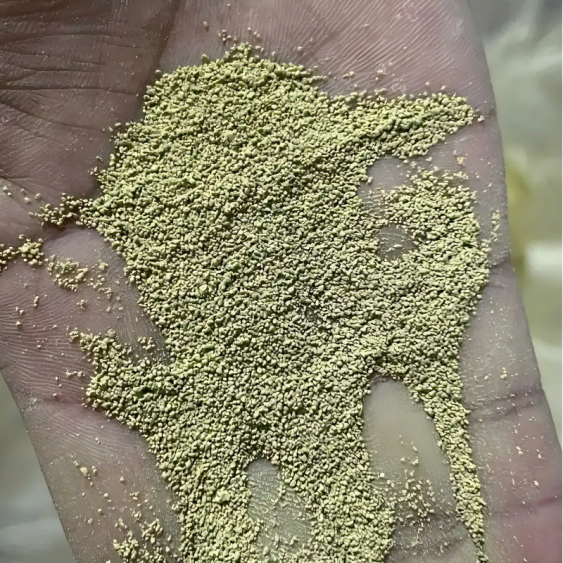

| surface | dark green powder |
| fineness | ≥98% |
| formula weight | 50000-60000 |
| grain size | less than 30um |
| conductivity | 7.5S/cm |
| representation density | 0.3-0.5g/cm3 |
| evocating agent | ammonium peroxydisulfate |
Preparation process description:
1. Take 50 ml of 0.5 mol/L H₂SO₄;
2. Add 1.2 mmol of aniline monomer to the solution and sonicate at 1200W for 20 minutes to dissolve the aniline in sulfuric acid.
3. Take 100 ml of 1 mol/L H₂SO₄ solution;
4. Add 1 mmol ammonium persulfate and perform ultrasonication at 1200W for 20 minutes;
5. Slowly add the mixture obtained from step 4 to the mixture obtained from step 2; and under low temperature (＜10°C), magnetic stirring (rpm), react for 16 hours;
6. High-speed centrifugation (15000 rpm/15 min), collect the precipitate, and wash it three times successively with ethanol and distilled water.
7. Vacuum freeze-drying for 24 hours, then collect the product.
