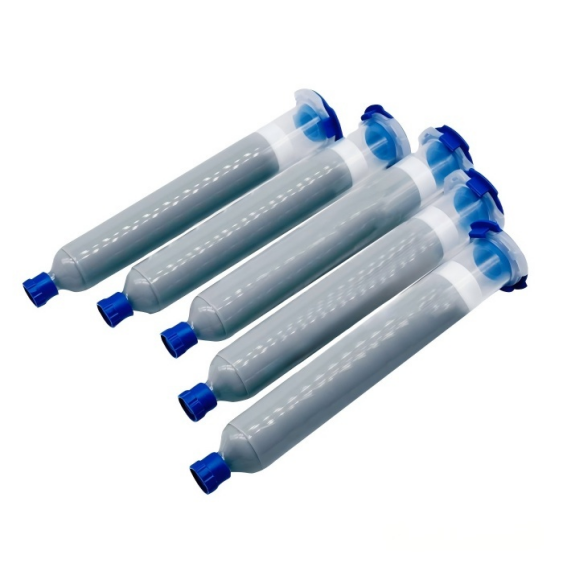

ST-CA1200 Thermal Conductive and Electrical Conductive Adhesive
Product Introduction
- Conductive adhesive features include:
1. Excellent adhesion, demonstrating strong bonding capacity to various substrates
2. Excellent and stable electrical conductivity
3. Rapid drying time for more efficient operation
4. Single-component curing at room temperature with humidity, convenient for use
5. Excellent resilience with outstanding recovery performance under repeated compression deformation, capable of withstanding compression rates up to 35%.

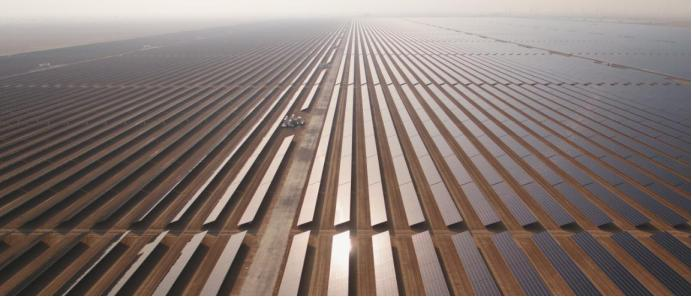

Ideal for large-scale rapid operations in the electronics industry, including photovoltaic panel lamination assembly, electromagnetic wave shielding gasket molding, microelectronics assembly, special device connections, welding alternatives, and other conductive applications.
performance index ：
|
product model |
ST-CA1200 |
|
Hardness (Shore D) |
70±5 |
|
Tensile strength (MPa) |
≥2.0 |
|
Shear strength (MPa) |
≥2.0 |
|
elongation at break （%） |
≥10 |
|
thermal conductivity (W/m·K) |
1.00 |
|
Volume resistivity (Ω·cm) |
10^-4 |
|
Flame retardant rating (UL94) |
V-0 |
Construction process recommendations:
1. Cleaning: Remove dust, water, and oil stains from the product surface, and maintain dryness.
2. Mixing: Before proportioning, first stir Agent A to incorporate the pigment (filler) that has settled at the bottom into the adhesive solution.
3. Mixing ratio: Weigh the ingredients according to the A/B ratio of the purchased product and pour them in sequentially (*Note: Use weight ratio, not volume ratio).
4. Mixing: Thoroughly mix the prepared A/B adhesive to prevent incomplete curing.
5. Defoaming: After mixing and stirring the adhesive, let it stand for 5-10 minutes to allow natural elimination of bubbles. If conditions permit, vacuum defoaming may be performed.
6. Application of adhesive: Pour the degassed adhesive into the product requiring adhesion, and use it within the recommended time frame.
