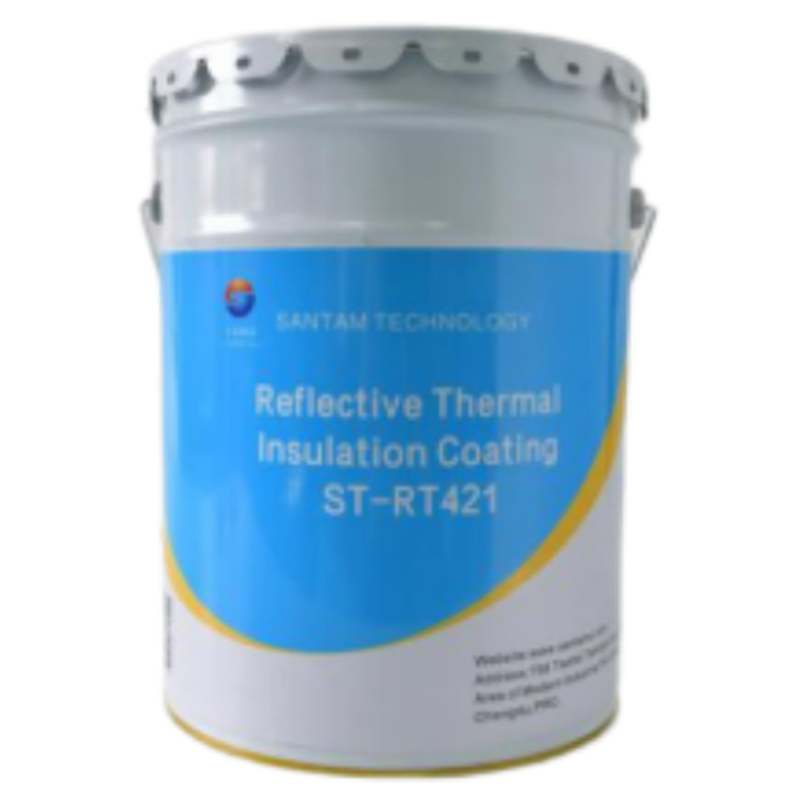

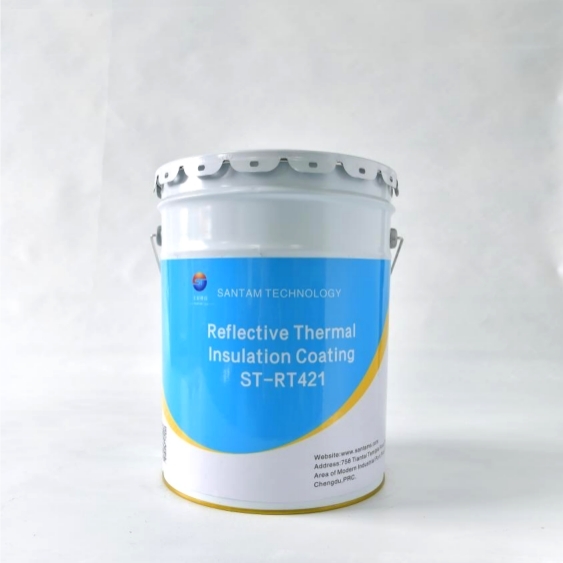

ST-RT421 Aerogel Reflective Thermal Insulation Coating
Product Introduction
- Product Introduction: The ST-RT421 Aerogel Reflective Thermal Insulation Coating features spectral selectivity and exceptional solar thermal reflection properties. Utilizing aerogel and nano-composites with spectral additives and composite cooling powders, this coating achieves over 70% reflectivity while radiating absorbed thermal energy into the surrounding environment through infrared wavelengths. As a versatile solution compatible with nearly all substrates, it stands as the industry-standard choice for thermal reflection, insulation, and radiation control.
During summer when prolonged direct sunlight causes substrate temperatures to exceed 50°C, this coating provides optimal thermal protection. Post-application, substrate temperatures decrease by 15-20°C with 4-8°C internal temperature reduction, significantly reducing energy consumption. The coating demonstrates superior weather resistance, long-term corrosion resistance, self-cleaning properties, high reflectivity, strong adhesion, and lasting gloss. Additionally, it serves as an effective thermal barrier in winter, preventing heat loss through high-efficiency insulation.
Use:

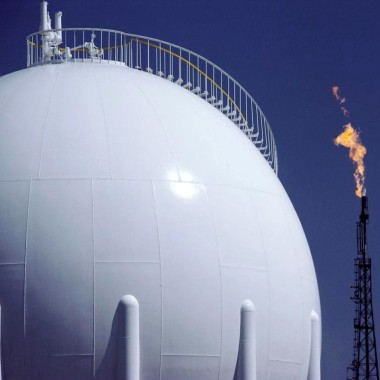

It is mainly used for building exterior walls, factory roofs, color steel roofs, grain warehouses, various tanks, tents, container surfaces, etc.
performance index ：
|
product model |
ST-RT421 |
|
temperature resistance |
Long-term working temperature ≤120°C |
|
Film color |
White, available in other customizable colors |
|
reflectivity |
≥70% |
|
hemispherical emissivity |
≥85% |
|
radiation band |
0.65-13.5μm |
|
antifungal |
Level 1 |
|
adhesion |
Grade 1, Cross-Cross Pressure-Sensitive Tape Method GB/T 1821-89 (1989) |
|
resistance to alkali |
5% NaOH solution for 500 hours without bubble formation or peeling |
|
acid fastness |
5% H2SO4 for 500 hours without bubble formation or peeling |
|
antiaging |
1000 hours, passed, coating remains unchanged in color and structure |
|
salt spray resistant |
5% NaCl, 750h, continuous spray 35±1, no change |
|
drying time |
Surface drying: 30 hours; actual drying time not less than 24 hours |
|
film thickness |
Recommended dry film thickness: 80-125 μm; 200-300 μm |
Construction process recommendations:
The coating can be directly applied to new or existing concrete surfaces, or applied over putty and other interior coatings. It can also serve as a primer for thermal insulation, while the topcoat can be freely selected based on user preference or wallpaper installation. As a reflective thermal insulation coating, the thickness can range from 0.3mm to 0.5mm; for thermal insulation purposes, a minimum thickness of 5mm is recommended.
